Teck Electrification Project

Snow-covered mountains in Elk Valley, B.C.

Situated in B.C.'s Elk Valley, Teck Resources runs four coal mines in the area, which employ more than a quarter of the region's workforce.

What's new

In February and March 2024, we held in-person open houses in Elkford and Sparwood and a virtual open house to discuss the project. See reports and documents below to view the information presented at the open houses.

As planning for the Teck Electrification Project progresses, we'll hold more open houses to discuss our plans with you. Check back here for updates or email projects@bchydro.com to be added to the project’s email list.

What we're planning

Transmission line

To deliver additional electricity to Teck's Elk Valley operations, we plan to build a new 230 kV transmission line – about 85 kilometres long – between a new substation and Teck's Elkview, Greenhills, and Fording River operations. Typical structures on this type of line are wood poles and 25 metres high. Right-of-way width will vary depending on location.

  • Between the new substation and Sparwood, there will be two lines side by side, which typically has a right of way that's 60 metres wide.
  • Between Sparwood and Teck's Elkview, Greenhills, and Fording River operations, there will be a single line, which typically has a right of way that's about 35 metres wide.
  • Water crossing spans and other longer spans such as over gullies will have wider rights-of-way and taller structures.

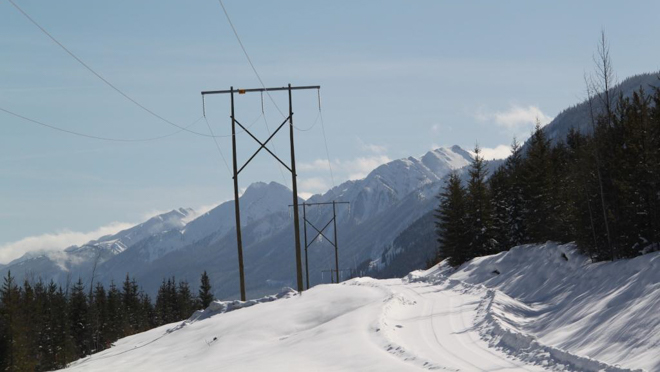

An example of a single circuit 230 kV transmission line.
An example of a single circuit 230 kV transmission line. These structures are similar to the ones we'll use for the new transmission line between Elkview, Greenhills, and Fording River operations.
An example of a double circuit 230 kV transmission line.
A double circuit 230 kV transmission line, similar to what we're planning between the new Alexander Creek Substation and Elkview operations.

Substation

To deliver additional electricity to Teck's Elk Valley operations, we plan to build the new Alexander Creek Substation near Highway 3, situated outside of Sparwood.

A substation brings together power lines of different voltages. Substations contain equipment that can change the voltages of these lines and safely control the flow of power.

Switching stations

We'll also build two new tap switching stations to connect Teck's mines to a new transmission line:

  • A switching station located at Teck's Elkview operations near Sparwood.
  • A switching station located at Teck's Greenhills operations near Elkford.

Switching stations are used to segment a transmission line path into sections that make the system more reliable and easier to maintain.

Passive reflector

We'll also build a mountain-ridge structure called a passive reflector. Two potential locations have been identified based on a high-level technical review. Additional locations may be required in the Elk Valley.

A passive reflector is a structure usually installed on a high elevation location. It looks like a large billboard and it allows microwave antenna towers at two different locations to communicate with each other. They reflect a signal from one microwave antenna tower and transfer it to a second microwave antenna tower.

Here in B.C., about 98% of the power we generate comes from clean or renewable resources, mostly powered by water. This makes us a leader in clean electricity generation in western North America.

We're committed to working with industrial customers who want to use our clean electricity to power their operations and reduce their greenhouse gas emissions.

Electrification is a key pathway to achieving the CleanBC emission reduction targets – and we continue to see significant interest from the residential, commercial, transportation and industrial sectors in making the switch from using fossil fuels to clean electricity.

Teck has committed to reducing its greenhouse gas emissions by 33% by 2030 and to achieve net-zero carbon emissions by 2050. Teck estimates this will reduce greenhouse gas emissions by 700kTCO2e a year by 2050. This is the equivalent of taking 155,000 gas-powered passenger vehicles off the road each year.

Beginning in 2027, Teck is planning to deploy battery electric haul trucks and electrify its processing equipment. As part of this switch to clean energy, electricity usage at Teck's Elk Valley mines will increase significantly.

To power this transition, we need to upgrade our infrastructure to meet this increased demand at Teck's Elk Valley mines.

Read Teck's climate change strategy.

We're working with Teck to consider options to connect the Elk Valley mining operations to our existing transmission line outside Sparwood. These options don't connect to the existing transmission line currently running between Sparwood and Elkford.

We're studying four corridor options for the transmission line route between the new Alexander Creek Substation east of Sparwood and Teck's Fording River operations north of Elkford.

These corridors generally follow existing disturbances on the landscape: the highway, an existing transmission line, the railway, and a forest service road.

Routing the new transmission line through these corridors will reduce impacts on fish and wildlife habitat, minimize new habitat fragmentation, and allow us to use existing access roads, as compared to routing on undisturbed land.

When we're considering the transmission line route, we'll work to minimize impacts where possible, including environmental and private property impacts.

We're consulting local Indigenous Nations and asking for input from local and regional government and key stakeholders on the transmission line route through the four corridor options.

Transmission line corridor options map

The map below shows four different proposed transmission line corridor options represented by colour. The final route may cross between corridor segments at the mines.

  • The green corridor represents the option running generally alongside the highway.
  • The purple corridor represents the option running generally alongside the existing transmission line.
  • The red corridor represents the option running generally alongside the railway.
  • The yellow corridor represents the option running generally alongside the forest service road.

Teck Electrification overview map

Teck Electrification overview map

Select the map [PDF, 178 KB] to view it at a larger size.


Providing access to clean, renewable electricity will avoid greenhouse gas emissions, which supports the CleanBC climate targets.

Building a new transmission line to deliver power to Teck's mines will reduce the load on the line that delivers power to our residential and commercial customers in Sparwood and Elkford.

The project is expected to provide economic and social benefits for local Indigenous communities and others living, working and doing business in the region through construction jobs, apprenticeships and other training, employment and procurement opportunities.

Our environmental principles help guide our approach to environmental risk. These principles include:

  • Working with Indigenous groups, stakeholders and the public on delivering our commitment to environmental protection.
  • Making environmentally informed and transparent business decisions that factor in minimizing habitat loss and fragmentation, achieving environmental benefits, and supporting climate actions and targets.
  • Complying with all applicable requirements in environmental legislation.

We're still early in the planning process and there's more work to do to determine environmental impacts.

When we select a transmission line route, there are several key environmental considerations we'll assess:

  • Reducing habitat fragmentation.
  • Incorporating environmental and archaeological criteria from local Indigenous Nations.
  • Avoiding impacts to sensitive habitat and species at risk.

The project will include vegetation removal, new access roads and excavation works which all have the potential to impact habitat. Our early desktop studies show the project could interact with old-growth forest, riparian and wetland habitat, and critical white bark pine habitat. The project could also spread invasive species, and disturb habitat for at-risk species including western toad, American badger, grizzly bear, various bat species and bank swallows. It may also impact ungulate winter range.

Once we select a leading route option, we'll carry out further studies to define these impacts and create mitigation and management plans.

The project is currently in its study stage. Our focus is on identifying the best location for the new transmission line and associated infrastructure. We expect to select a leading route option in summer 2024.

The next stages will study the leading route option in more detail. The project will still need to undergo environmental processes, property acquisition, planning design, and regulatory approvals before construction can start. Once we select a leading route option, we'll carry out further studies to improve our understanding of that option.

We'll provide more information on the schedule as our plans move ahead.

Consultation

We're consulting with Indigenous Nations and engaging with stakeholders to help us plan the project and select a transmission line route.

In early 2024, we held open houses in Elkford, Sparwood, and online to share our early plans and options for the route corridors we're considering. See reports and documents below to view the information presented at the open houses. We also met directly with local and regional governments, environmental and recreation groups. The information we're collecting will be used to inform our routing and design plans and to develop mitigation and management plans as the project advances.

We want to hear from Elk Valley residents, businesses, and organizations. Contact us if you have input to share or would like to receive emailed updates.

Contact us

If you'd like to learn more about the project, please contact us at:

Email: projects@bchydro.com
Phone: 604 623 4472
Toll free: 1 866 647 3334
